  • Installing solar panels on an RV involves connecting solar panels to a charge controller.
  • The components of an RV solar panel system help ensure efficiency and safety.
  • Proper solar panel installation allows for a greener and more sustainable power source.

Let’s look at how you can connect solar panels to your RV batteries for efficient and eco-friendly power on your camping journeys.

To hook up solar panels to RV batteries, you first need to install solar panels on the RV roof. Connect panels to a charge controller and then link the controller to the RV batteries. Ensure proper wiring and safety measures. This setup provides reliable, renewable energy for off-grid travel.

I've mastered the art of solar panel installation for RVs. Integrating solar power into your RV life is a game-changer. It's not just about saving on fuel costs but about embracing sustainable, off-grid living. Once you experience the freedom and efficiency of solar-powered travel, there's no going back.

TABLE OF CONTENTS

HideShow

How to Hook Up Solar Panels to RV Batteries

Hooking up solar panels to your RV batteries is a sustainable and efficient way to power your electrical devices while on the road. This installation process is simple and can save you from constantly relying on shore power or generators.

By learning how to set up your solar panel system, you can enjoy the benefits of renewable energy and potentially reduce your carbon footprint. To get started with the installation process, it's essential to have a clear understanding of the components required for an RV solar panel system.

The basic components include solar panels, a charge controller, and a battery bank. Knowing how these elements work together will ensure that your RV batteries receive the charge they need from the sun's energy while maintaining safety and efficiency. This video shows a clear illustration of how to hook up solar panels to RV batteries.

What You Need for RV Solar Panel Installation

When considering how to hook up solar panels to RV batteries, it's essential to gather all the required components and tools for a successful installation. The main elements of an RV solar panel system typically include solar panels, an inverter, a charge controller, batteries, and mounting brackets.

Selecting Solar Panels

First, you'll need to select the appropriate solar panels for your RV. Some popular options include monocrystalline, polycrystalline, and thin-film solar panels. Depending on your energy needs and available roof space, you may need multiple panels.

Each panel has different power ratings, and considering how many solar panels you need will depend on your RV's energy requirements and your desired battery charging speed.

Choosing an Inverter

Next, you'll need an inverter to convert the DC power generated by the solar panels to AC power, allowing you to run AC appliances and devices within your RV. There are two main types of inverters: pure sine wave inverters and modified sine wave inverters.

Pure sine wave inverters tend to be more expensive but produce higher-quality power suitable for sensitive electronics, while modified sine wave inverters are cheaper and better suited for less sensitive appliances.

Charge Controller

A charge controller is another crucial component responsible for regulating the voltage and current coming from the solar panels to your RV batteries. It ensures that the batteries don't get overcharged, which can lead to damage or reduced lifespan.

Battery Selection

Your RV's existing batteries or battery bank can typically be used with a solar system. However, when selecting batteries for a new solar panel installation, it's essential to consider factors such as capacity, battery type (e.g., flooded lead acid, sealed lead acid, AGM, or lithium), and the number of batteries required to support your RV electrical system.

Mounting and Wiring Components

In addition to these core components, you will also need mounting brackets to secure the solar panels to your RV's roof, as well as the necessary wiring and connectors to connect the components together. Make sure to use appropriately sized cables and connectors to ensure efficient energy transmission and avoid voltage drops.

These are the basic mounting and wiring components you’ll need:

  • Mounting brackets
  • Wiring
  • Connectors
  • Appropriately sized cables

Installation Tools

Finally, you'll need some basic tools for the installation process, such as a drill to create holes for mounting brackets, a wire stripper and crimper, a wrench for tightening bolts, and a multimeter for testing connections and voltages.

Here's a list of the basic tools required for the installation process:

  • Drill (for creating holes for mounting brackets)
  • Wire stripper
  • Crimper
  • Wrench (for tightening bolts)
  • Multimeter (for testing connections and voltages)

Having these tools and the proper components will ensure a smooth installation process and, ultimately, a successful solar panel system for your RV.

Step-by-Step Installation Guide

In this section, we'll show you how to hook up solar panels to your RV batteries in a simple and efficient manner. By following these steps, you'll be able to generate renewable energy for your RV and enjoy the off-grid experience.

Panel Placement and Mounting Brackets Installation

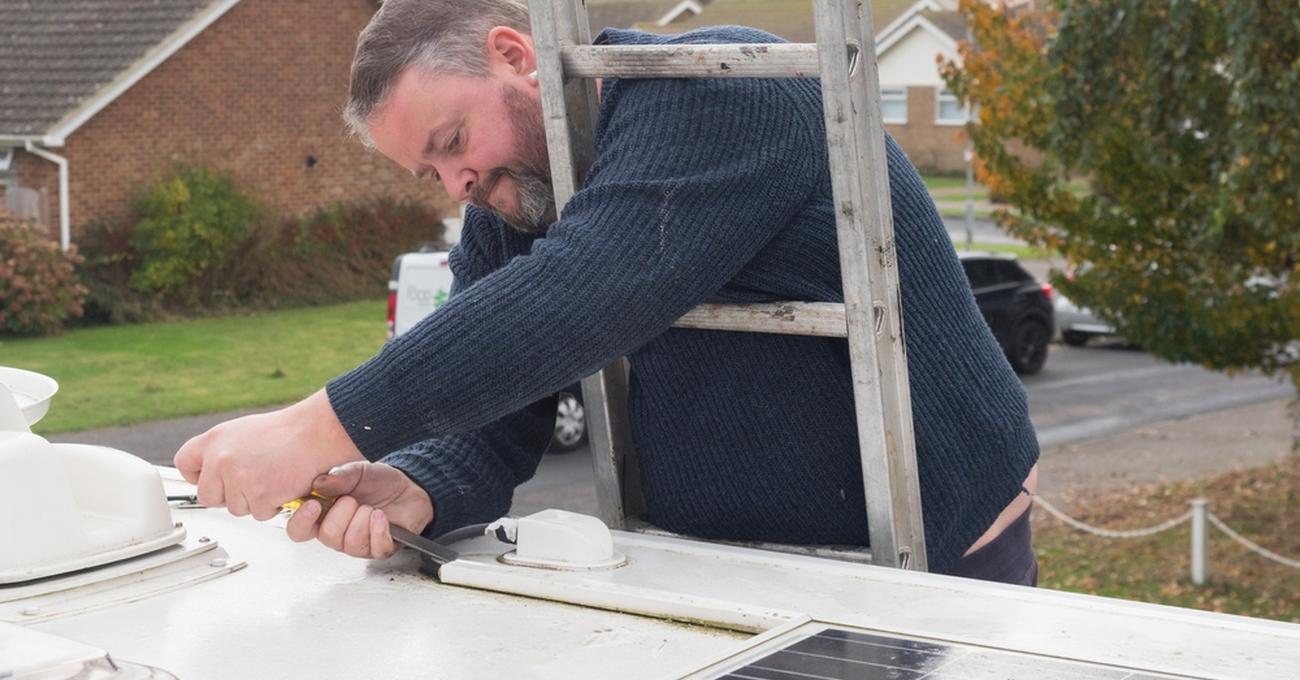

First, it's important to choose the ideal location on your RV roof for your solar panels. Consider factors like shading, water drainage, and roof vent clearance. After determining the best spot, install the mounting brackets with secure bolts and a sealant to prevent leaks.

Connecting Solar Panels With Wires and Connectors

With your solar panels mounted, it's time to connect them in either series or parallel, depending on your power requirements.

Use MC4 connectors for secure connections, and make sure to connect the positive and negative wires correctly to maintain the correct polarity. Bundle the wires together using electrical tape to keep them organized.

Connecting the Charge Controller to the Battery Bank

Now, you need to install a solar charge controller to manage the flow of electricity between the solar panels and your RV battery bank. Choose a charge controller that supports your RV batteries, like AGM or lithium batteries.

Mount the charge controller in a convenient location and connect it to the battery bank using a tray cable. Remember to connect a fuse or circuit breaker between the charge controller and the battery bank for added safety.

Connecting the Inverter to the System

An inverter is necessary if you want to use AC appliances in your RV, like air conditioners or coffee makers.

To connect an inverter to the system, first, identify the positive and negative terminals on your batteries. Connect the inverter's positive wire to the battery's positive terminal and the negative wire to the negative terminal.

This table shows the solar panel connection components and their purposes.

Component Purpose
Solar panels Capture the sun's energy and generate electricity
Mounting brackets Secure solar panels to the RV roof
Charge controller Manage electricity flow between solar panels and battery bank
Battery bank Store electricity generated by the solar panels
Inverter Convert DC power from batteries to AC power for appliances

Testing the Solar Power System

With everything connected, it's time to test your solar power system. Turn on your solar charge controller and monitor the charging process. Ensure that there's enough energy being absorbed by the panels to meet your power usage requirements. If all components are working properly, your RV is now ready for efficient, off-grid adventures.

Importance of the Battery Bank

A battery bank plays a crucial role when it comes to setting up a solar-powered system on an RV. It's responsible for storing energy generated by your solar panels during the daytime and providing a consistent power supply when the sun is not shining.

RV battery setups can come in various shapes and sizes, but one thing is for sure - you need a reliable power source when you're on the road. There are different types of batteries available, including lead-acid, AGM, and lithium-ion batteries.

Each type has its advantages and drawbacks, but lately, lithium-ion batteries have gained popularity due to their high energy density and longer lifespan. Battery banks are typically formed by connecting multiple RV batteries together, either in parallel or series configurations, for increased capacity and voltage.

Properly sized battery banks are essential for ensuring your solar-powered RV system can handle your usage patterns and energy requirements.

A charge controller plays a significant role in managing and protecting your battery bank. It regulates the power flow from your solar panels to your RV batteries. A good quality solar charge controller helps you ensure that your battery bank is not overcharged or discharged, thus extending the life of your RV batteries.

Regularly inspecting and cleaning your battery terminals can help maintain the efficiency and longevity of your battery bank. Proper maintenance of your battery bank is essential to ensure the smooth functioning of your entire solar system.

Parallel vs. Series Connection

When hooking up solar panels to your RV batteries, it's essential to understand the two primary wiring methods: parallel and series connection.

In a parallel connection, solar panels are wired with their positive terminals connected together and their negative terminals connected together. This setup maintains the same voltage across all panels while increasing the current (amperage). Commonly used in RV solar systems, the parallel connection allows for better performance in partially shaded conditions and tends to be more fault-tolerant.

On the other hand, a series connection involves wiring the solar panels in a "chain" by connecting the positive terminal of one panel to the negative terminal of the next panel. This method increases the voltage while maintaining the same current (amperage), resulting in a higher voltage output.

Series-connected panels are more sensitive to shading, but they can be beneficial when used in combination with a high-voltage solar charge controller.

Pros of Parallel Connection

  • Better performance under partial shading
  • More fault-tolerant
  • Easy to expand the system later

Cons of Parallel Connection

  • Requires thicker wiring to handle the increased current
  • It can be less efficient than a series connection in certain situations

Pros of Series Connection

  • Higher voltage output can be advantageous with some charge controllers
  • Thinner wiring can be used, reducing costs

Cons of Series Connection

  • Performance decreases when panels are shaded
  • Less fault-tolerant

Safety Measures

Before you begin hooking up solar panels to your RV batteries, it's important to take necessary safety measures to ensure a successful and secure installation. Preparing and following these precautions will also help you avoid accidents or damage to your equipment while working on your solar panel system.

First and foremost, make sure you have the right tools and materials for the installation process, such as a drill, electrical tape, and all necessary solar panel components. Be careful to check the polarity of your wires and connections to prevent any short circuits.

Always switch off the electricity in your RV and disconnect any connections to shore power before starting the process.

Wearing protective gear is necessary while working with tools and handling electrical wiring. This includes safety goggles, gloves, and long sleeves to protect your skin. Also, be cautious while working on your RV roof, as it may be slippery or unstable.

A crucial aspect of any solar installation process involves handling the electrical components with caution. Be mindful of the solar panel's terminals and avoid touching them when exposed to light, as they could generate electricity even indoors.

When connecting the solar panels to your RV batteries, be careful with the orientation of positive and negative terminals. If connected incorrectly, it can lead to malfunctions and potential damage to your solar system. Ensure proper polarity by following the guidelines in your panel and charge controller manuals.

Easy Solar Panel Maintenance Tips

Embarking on an adventure with your solar-powered RV is thrilling, but like any good journey, it requires some preparation and upkeep. Let’s roll up our sleeves and keep your solar journey smooth and enjoyable!

Regular Cleaning

Keeping your solar panels clean is crucial for optimal performance. Just a quick wipe-down with a soft cloth and soapy water can do wonders. It’s like giving your panels a mini spa day!

Check Connections

Every now and then, take a stroll around your RV and give those connections a once-over. Loose or corroded connections can be sneaky energy thieves. A simple tighten-up can keep everything running smoothly.

Battery Health

Don’t forget about your batteries. They need love too! Regularly check their charge levels and ensure they're not being over or undercharged. It's like checking in on a good friend to make sure they're doing alright.

Inspection Routines

Set a reminder to do a thorough inspection of your solar setup. Look for any damage or wear and tear. It's a great opportunity to bond with your RV and ensure many more sun-powered adventures together!

RV Solar Kit Options

When it comes to setting up solar power for your RV, there are several RV solar kit options available. The key components of an RV solar kit generally include solar panels, a solar charge controller, an inverter, and batteries. Knowing your power needs and understanding the options will help you make the best choice for your RV.

Solar Panels for RVs

The first component to consider is the solar panels. The most common type for RVs is the 100-watt panel, with options for higher wattage available. Renogy is a well-known brand offering RV-specific solar panels. The number of panels you need will depend on your daily power usage and the space available on your RV roof.

Solar Charge Controller

Next, you'll need a solar charge controller to regulate the energy flow from the panels to your RV batteries, preventing overcharge or quick discharge. Pulse-width modulation controllers are more affordable but less efficient, while maximum power point tracking controllers offer higher efficiency and faster charging.

Inverters in RV Solar Kits

An inverter, converting DC power from the panels to AC power for electrical appliances, is also vital. There are two kinds: modified sine wave and pure sine wave inverters. The former is cheaper, but the latter provides cleaner, more consistent power, especially for sensitive electronics.

Batteries for Energy Storage

Lastly, batteries store the energy generated by your solar panels. Common types in RV solar systems are lead acid batteries, like AGM or flooded batteries. Lithium batteries, however, are becoming popular due to their longer lifespan and higher efficiency. The size of your battery bank should align with your power usage and the duration you plan to spend without shore power.
